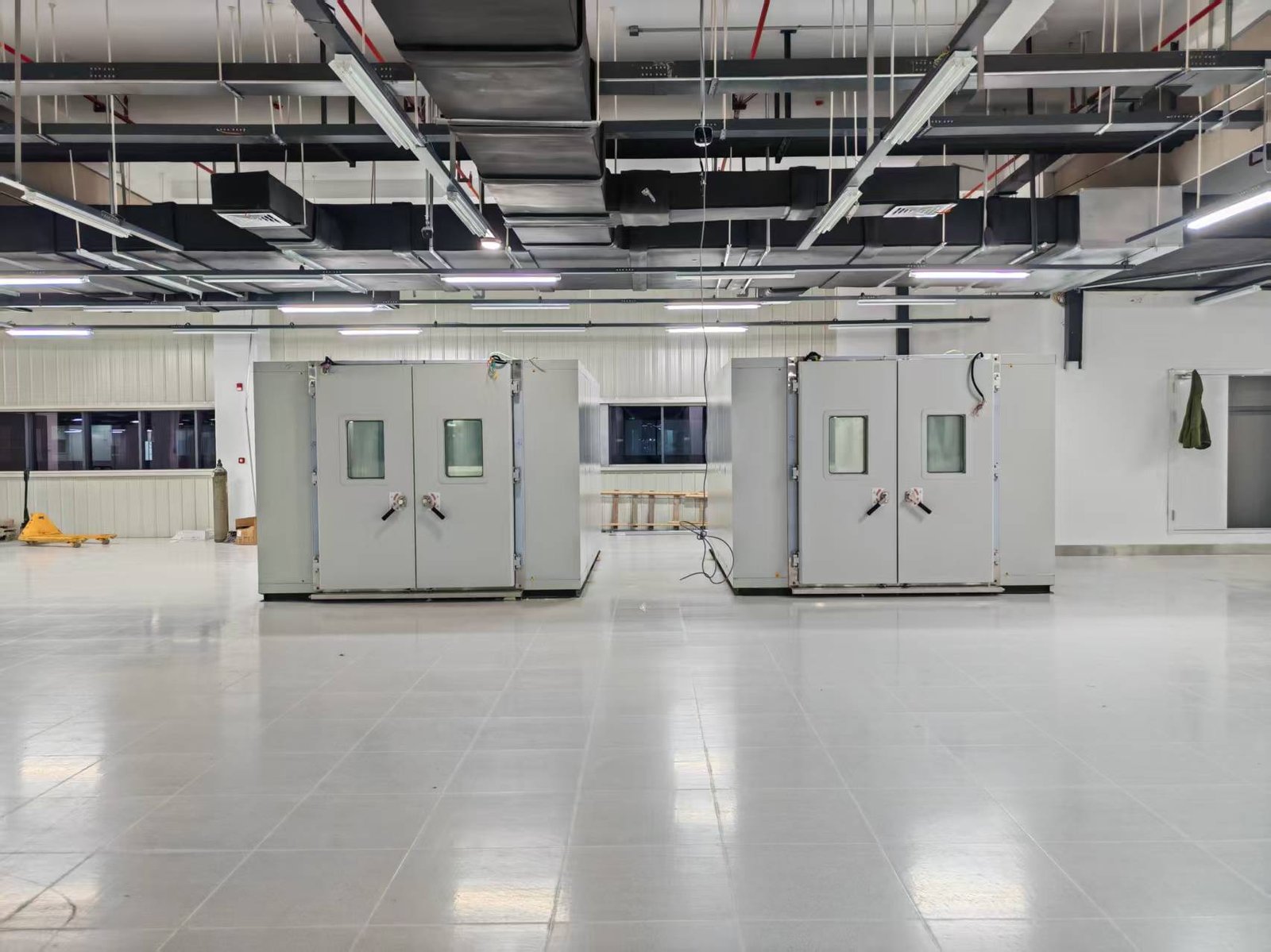

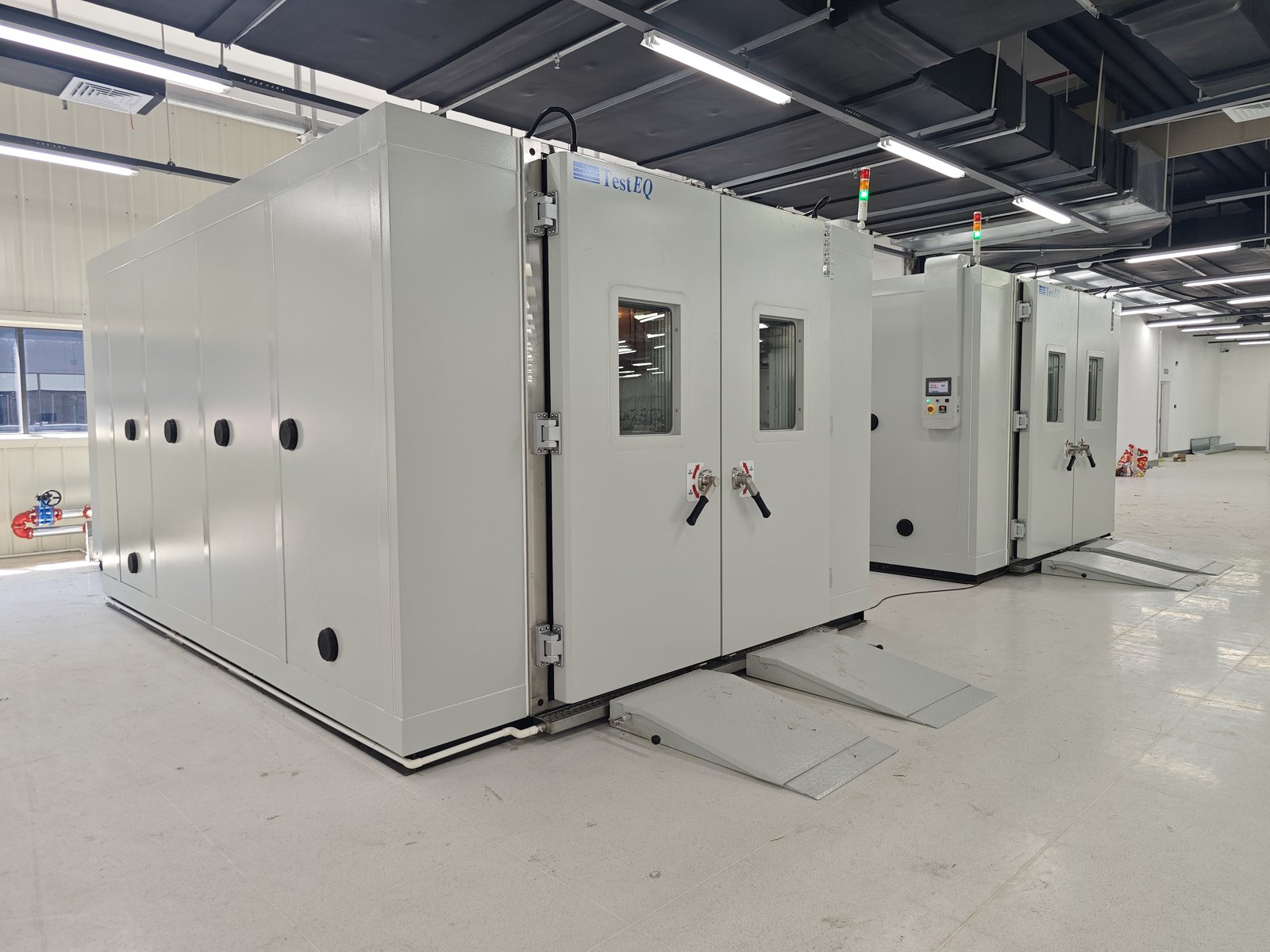

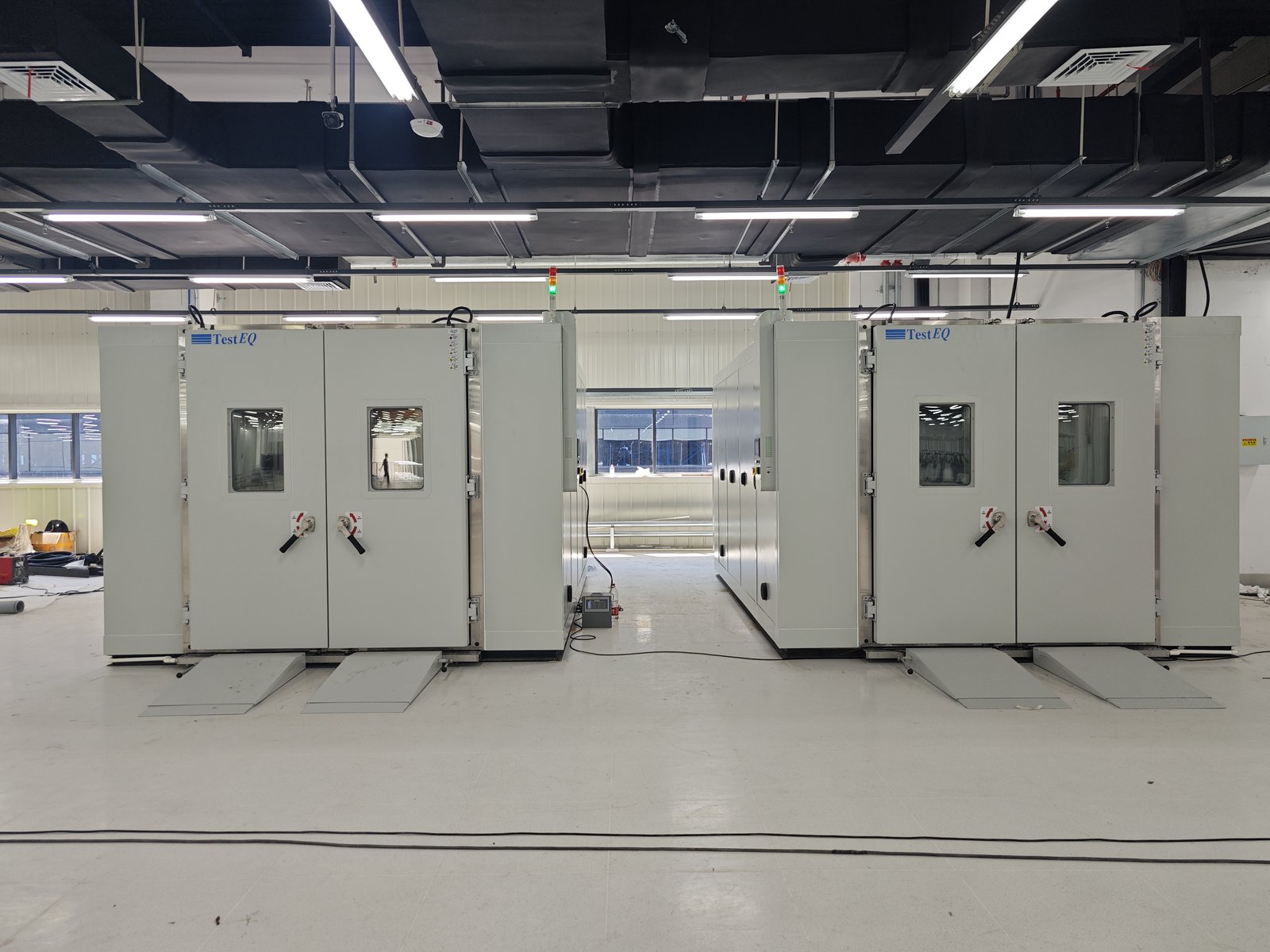

The TestEQ EWTH-series walk-in environmental chamber provides a large test volume for bulky or heavy products and system-level test items. TestEQ builds walk-in rooms in assembled-panel and fully welded constructions: because polyurethane panel insulation is limited to a maximum of 85 °C, a fully welded structure is used where a higher temperature range, faster temperature change rate or high-temperature high-humidity conditions are required.
Applications
- Telecommunications, defense and aerospace equipment
- Pharmaceutical, automotive and electronics industries
- Large assemblies and system-level products
- Products that must be driven or operated while under test
Configuration and features
- Standard volumes from 7.8 m³ to 44.1 m³, and larger custom rooms; large walk-in temperature-humidity systems can be customised up to 4500 m³.
- Temperature range -20 °C to +85 °C, -40 °C to +85 °C or -65 °C to +85 °C, depending on model; higher-temperature and high-temperature high-humidity versions are available in the welded construction.
- Assembled-panel construction for standard conditions; fully welded construction for higher temperatures, faster temperature change rates and high-temperature high-humidity testing.
- Rooms can be engineered to a customer’s own requirements, including access doors, observation windows, personnel access and load handling.
- Refrigeration and control systems are configured together with the test load and required ramp rates.
Specifications
| Model | Volume (m³) | Temperature range |
|---|---|---|
| EWTH7.8-20W | 7.8 | -20 to +85 °C |
| EWTH7.8-40W | 7.8 | -40 to +85 °C |
| EWTH7.8-65W | 7.8 | -65 to +85 °C |
| EWTH11.7-20W | 11.7 | -20 to +85 °C |
| EWTH11.7-40W | 11.7 | -40 to +85 °C |
| EWTH11.7-65W | 11.7 | -65 to +85 °C |
| EWTH15.6-20W | 15.6 | -20 to +85 °C |
| EWTH15.6-40W | 15.6 | -40 to +85 °C |
| EWTH15.6-65W | 15.6 | -65 to +85 °C |
| EWTH16.2-10W | 16.2 | -10 to +85 °C |
| EWTH16.2-20W | 16.2 | -20 to +85 °C |
| EWTH16.2-40W | 16.2 | -40 to +85 °C |
| EWTH16.2-65W | 16.2 | -65 to +85 °C |
Additional volumes and temperature ranges are engineered to order. Temperature change rates such as +25 → -20 °C and +25 → -40 °C are specified per configuration.
Standards
Walk-in chambers are configured for the customer’s test program; TestEQ equipment is designed with reference to GB, GJB, IEC, ASTM and UL test standards.
To size a walk-in room and confirm the construction type, contact us with the test item dimensions, weight, access requirements and required conditions. Related: Custom Non-standard Test Chamber, High and Low Temperature (Humidity) Test Chamber.
